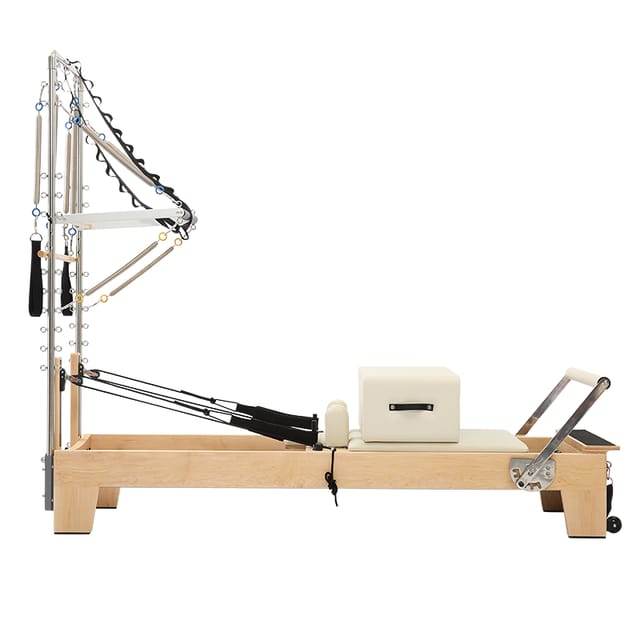

Afton Pilates Luma Reformer With Tower (Model:102)

Core Construction

• Frame Material: Premium solid North American maple wood

• Finish: Hand-polished 6 times and sealed with wood wax oil (for durability and a silky natural texture)

• Platform Height: 15" (ideal for ease of mounting and instructor demonstration)

• Build Quality: Mortise and tenon joints with steel reinforcement for longevity

• Foot Leveling: Adjustable feet for perfect ground contact

Dimensions & Weight

• Overall Size: 228.5 cm (L) × 68.5 cm (W) × 39 cm (H) | 90” × 27” × 15”

• Tower Height: Semi-elevated structure with stainless steel frame, height compatible with full Cadillac-style exercises

• Net Weight: 128 kg (282 lb)

• Gross Weight (with packaging): 187 kg (412 lb)

• Shipping Dimensions: 251.8 × 79.3 × 53.5 cm

• Packaging Type: Plywood crate for international shipping

Spring System

🔹 Reformer Base (Carriage)

• Total Springs: 6

  • 2 × Red – Heavy (60 lb)

  • 2 × Blue – Medium (26 lb)

  • 2 × Yellow – Light (19 lb)

• Adjustment: 3-position gear bar system

• Origin: High-performance piano wire springs imported from Japan

• Expected Lifespan: 2 years or 3,000 hours of use (whichever comes first)

🔹 Tower Unit (Vertical Frame)

• Total Springs: 8

  • 2 × Long Blue – Heavy (30 lb)

  • 2 × Long Yellow – Light (22 lb)

  • 2 × Short Blue – Medium (27 lb)

  • 2 × Short Yellow – Light (20 lb)

• Tower Adjustability: 49-hole stainless steel push bar grid for varied spring tension & height configurations

Functional Components

• Track: Aircraft-grade aluminum alloy rails (dust-resistant and silent gliding)

• Carriage Glide System: Sealed bearing wheels for ultra-smooth movement

• Headrest: Adjustable for three heights

• Shoulder Rests: Adjustable width; rotatable to 180° for different body types and exercise variations

• Footbar:

  • 304 mirror-polished stainless steel

  • 7 adjustable gear positions

  • Lock-in design for jumpboard compatibility

• Ropes: Low-stretch climbing-grade ropes with reinforced silent straps

• Pulleys: High-performance smooth-glide pulleys with adjustable height

• Handles: Padded loops for feet and hands; quick-swap compatible

• Jumpboard: Included; must be supported with handle bar

• Tile Platform Board: For seated or standing tower exercises (included)

Mobility & Storage

• Wheels: Two integrated rear wheels for easy rolling

• Storage Tips: Store flat or vertically in a secured, dry indoor area with 1m clearance around

Safety Features

• Safety rope with secure locking

• Anti-slip feet and base stabilizers

• Handle bar must be used with jumpboard

• Tower screws, spring clips, and push bar grid to be checked before each session

Maintenance Guidelines

• Daily: Check screws, springs, ropes, pulleys, and wood finish for wear or loosening

• Weekly: Clean rail dust; inspect shoulder rests, footbar, and upholstery for strain

• Biannual: Replace springs nearing 2 years or 3,000-hour threshold

• Wood Care: Dry cloth only (no wet wipes); avoid direct sunlight to prevent oxidation

Warranty

• Frame, Platform & Springs: 1 year

• Moving Parts (wheels, ropes, straps, pulleys): 6months

• Upholstery: 90 days for material defects (excluding wear/tear, burns, jewelry scratches)

Target Applications

• Premium Pilates studios

• Physical therapy and rehab clinics

• High-end hotel gyms & wellness centers

• Instructor-led training environments

Why Choose the Luma Reformer With Tower (Model:102)

• Fully integrated reformer + tower system for full-body traditional & contemporary Pilates

• Designed for high-frequency studio use, offering zero-rattle movement and unmatched adjustability

• Premium materials, lifetime durability, and smooth glide rival global top-tier brands

• Ideal for practitioners who want a Cadillac experience without a full-frame Cadillac
